Enclosed Ground Flare for Low-Pressure, Off-Spec Biogas Disposal

Biogas Facility, Indonesia
Indonesia

Designed for reliable, smokeless performance across variable gas quality and flow conditions.

800
Nm³/hr
Off-spec biogas
Gas
99 %
DRE

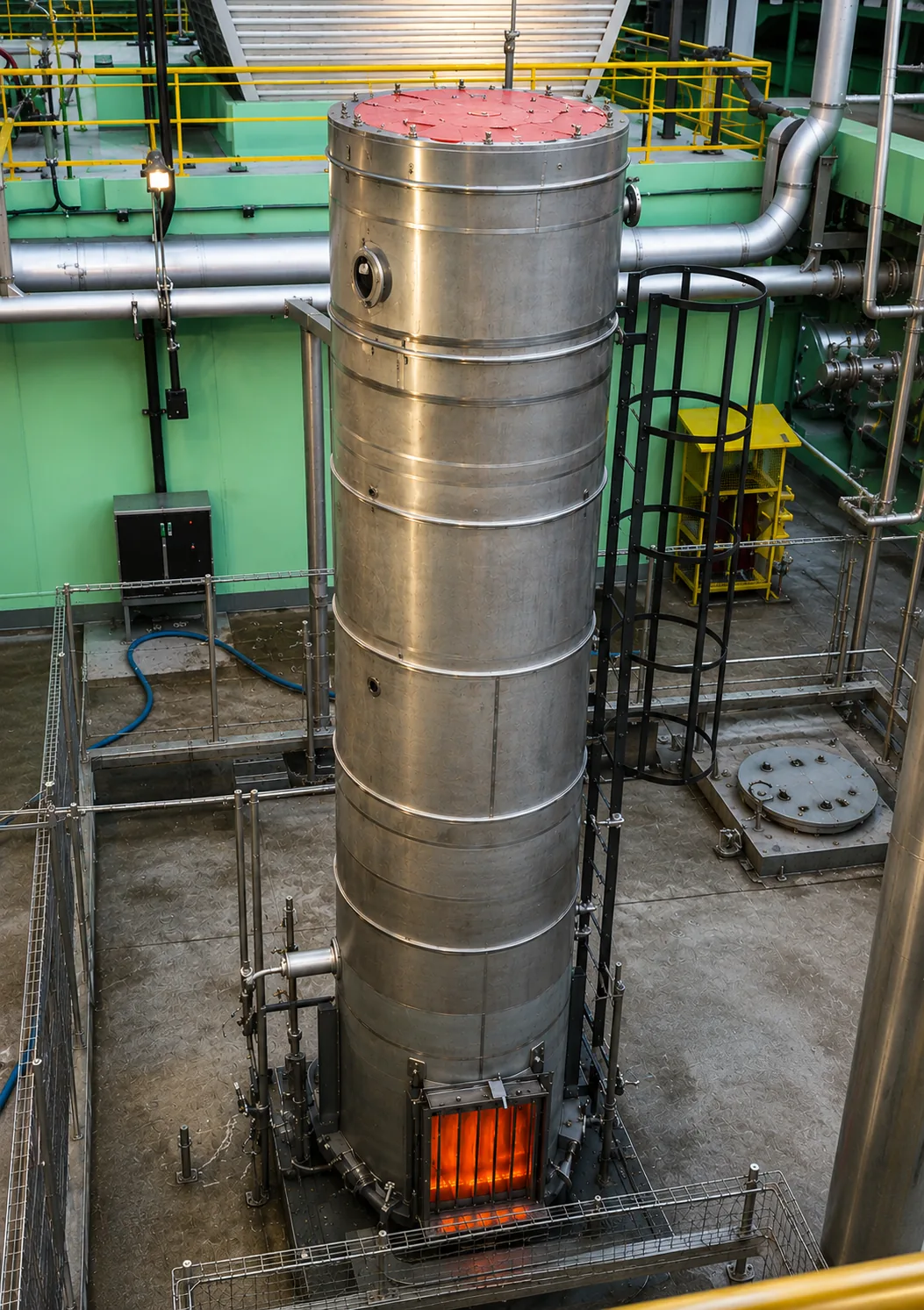

Enclosed ground flare for safe, smokeless biogas flaring at an industrial facility.
The Overview
Water treatment EPC
Client
Biogas
Sector
Engineering, Manufacturing, Supply, Commissioning
CRA Role
Enclosed ground flare for biogas management
Application
Delivered
Status
Enclosed ground flare
Flare Type

CRA delivered a customised enclosed ground flare system for a water treatment EPC to support safe biogas management designed for environmental compliance at a biogas plant in Indonesia. The system was engineered to handle excess and off-spec biogas under low-pressure conditions, designed for complete and smokeless combustion while minimising visible flame, odour, noise, and thermal radiation. The solution emphasised operational safety, regulatory compliance, and stable performance across varying biogas compositions.

The Challenge

Safely Disposing Excess Biogas While Controlling Emissions and Site Impact

The EPC partner required a biogas disposal system capable of safely oxidising excess or off-spec biogas generated during plant operations. The key challenges included:

‍

  • Reliable combustion of low-pressure biogas with variable composition
  • Requirement for smokeless operation to avoid visible flame and odour nuisance
  • Containment of heat, noise, and radiation in proximity to plant infrastructure
  • Stable ignition and flame monitoring under fluctuating flow conditions
  • Safe operation in hazardous environments with minimal operator involvement

‍

The system needed to deliver consistent combustion performance while meeting environmental and safety expectations.

Our Solution

Fully Enclosed Ground Flare with Automated Combustion Control

CRA engineered and supplied an enclosed ground flare system designed for stable, complete oxidation of biogas within a sealed combustion chamber. The solution focused on combustion efficiency, automation, and environmental control.

‍

Core Components Delivered
  • Fully enclosed combustion chamber with optimised air injection
  • Forced air supply system for controlled smokeless combustion
  • Automated ignition and flame detection system
  • Integrated piping, instrumentation, and safety interlock
  • Skid-mounted structural configuration for controlled installation

‍

Engineering and Design
  • Combustion design optimised for 800 Nm³/hr biogas flow
  • Low-pressure system design for off-spec biogas
  • Air injection and chamber geometry tailored for methane and H₂S oxidation
  • Noise, heat, and emission containment through enclosed configuration
  • Safety-focused interlock logic for hazardous area operation

‍

Fabrication and Commissioning
  • In-house fabrication and assembly of the enclosed flare system
  • Factory checks of ignition, airflow, and control logic
  • On-site installation and commissioning at the client facility in Indonesia
  • Performance validation across varying flow rates and gas compositions
Results

Stable, Smokeless Biogas Disposal with Environmental Control

  • Complete and smokeless oxidation of biogas within an enclosed chamber
  • Effective control of odour, noise, and thermal radiation
  • Stable combustion performance under variable operating conditions
  • Automated operation with minimal operator intervention
  • Reliable and safe performance in a hazardous operating environment
Conclusion

Flaring systems for safe biogas management

This project demonstrates CRA’s capability to deliver enclosed ground flaring systems that enable safe, sustainable biogas management. By combining advanced combustion engineering with automation and environmental control, CRA provided the EPC partner with a robust solution for biogas disposal designed for compliance. The installation reinforces CRA’s expertise in designing flaring systems that balance safety, performance, and sustainability across diverse biogas applications.
