Utility Flare

A utility flare — unassisted, no steam or forced air — is the right choice when waste gas burns smokelessly on its own, or when smokeless operation is not a regulatory or community requirement. It's the simplest, lowest-cost flare configuration and the most reliable due to fewer moving parts.

Best fit when:

• Waste gas is light hydrocarbons, hydrogen-rich, or otherwise self-smokeless
• Site is industrial with no smoke-visibility constraints
• Steam or forced air infrastructure isn't available or justified
• Capital budget is constrained
• Service is intermittent (emergency relief) rather than continuous

For heavy hydrocarbon streams or sites with smoke-visibility constraints, air-assisted or steam-assisted flares are required.

Gas streams that burn smokelessly without assist are typically light hydrocarbons (methane, ethane), hydrogen-rich streams, and gases with low carbon-to-hydrogen ratios. They produce clean flames because there's not enough heavy carbon content to form soot before complete combustion.

Common self-smokeless streams:

• Natural gas (mostly methane)
• Hydrogen, syngas, or hydrogen-rich purges
• Refinery off-gas with high H₂ content
• Biogas (with sufficient methane content and low siloxanes)
• Landfill gas (when methane > 30%)
• Light naphtha vapors at low concentration

Streams with C3+, aromatics, or olefins generally require air or steam assist to burn smokelessly. Test burns or composition analysis confirm whether a stream qualifies for unassisted flaring.

Utility flares are available in three structural configurations sized for the height and wind/seismic loading of the application: self-supported, guyed, and derrick-supported. Selection depends on stack height, ground footprint, and wind load.

• Self-supported — single stack with internal/external structural reinforcement; preferred for shorter heights (typically up to 30 m); minimal ground footprint.
• Guyed — slender stack stabilized by tensioned guy wires anchored to the ground; cost-effective for tall stacks (60+ m) where footprint is available.

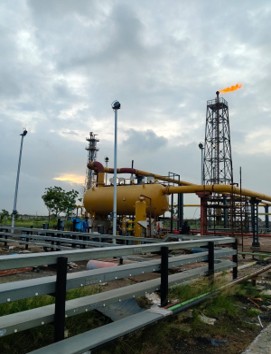

• Derrick-supported — external lattice structure surrounds the stack; preferred for very tall flares (60+ m) on constrained sites or in high-wind/seismic zones.

Structural design follows ASME and applicable wind/seismic codes for the project location.

Utility flares typically achieve turndown ratios of 50:1 to 1,000:1 depending on tip design and pilot configuration. Even without steam or air assist, multi-stage tips and properly sized pilots allow stable combustion from low purge flows up to peak relief.

What enables wide turndown:

• Continuous pilot system maintains ignition at lowest flows
• Multi-port or staged tip distributes flow at high relief
• Purge gas system prevents air ingress at low flow
• Tip exit velocity stays within stable-flame range across the operating envelope

For very high turndown applications, flame retention rings or wind-resistant tip designs improve flame stability at the lowest flows.

The defining difference is the absence of assist medium. Utility flares rely entirely on the gas stream's own properties for clean combustion; assisted flares add steam, air, or pressure energy to enable smokeless combustion of streams that would otherwise smoke.

• Utility (unassisted) — simplest, lowest cost, most reliable; only suited to self-smokeless streams or sites where smoke is acceptable.
• Air-assisted — adds blower for smokeless combustion of moderate-flow heavy hydrocarbons; preferred when steam is unavailable.
• Steam-assisted — adds high-pressure steam for highest smokeless capacity; standard at refineries with steam infrastructure.
• High-pressure (sonic) — uses gas pressure itself for smokeless combustion of high-pressure streams; no external assist needed.

Capital, operating cost, and complexity all increase as you move from utility to assisted designs.

Utility flares are the lowest-maintenance flare configuration because they have no assist medium (no blower, no steam piping). Maintenance is concentrated on the tip, pilot system, ignition, and purge controls.

Typical maintenance schedule:

• Routine (monthly/quarterly): pilot flame check, ignition system verification, purge gas flow check
• Annual: tip inspection (visual or borescope), instrumentation calibration, purge reduction seal check, structural inspection
• Multi-year: tip replacement if eroded (typically 10–15+ years), pilot burner overhaul, structural recoating

Service life of the structure is 25+ years with proper maintenance. The tip is the primary wear item; replacement intervals depend on service severity (sour or hot streams shorten tip life).

Utility flares meet API 537 (flare design), API 521 (pressure relief), and EPA 40 CFR 60.18 (control device requirements). Even though they're the simplest flare type, the same regulatory and design standards apply as for assisted flares — only the assist hardware is omitted.

Compliance items:

• Tip exit velocity within stable-flame limits
• Combustion-zone net heating value above regulatory minimum
• Continuous pilot monitoring with assured ignition
• Radiation calculations for personnel-safe ground levels (per API 521)
• Structural design per ASME and applicable wind/seismic codes

Manufacturing meets ISO 9001, ASME, API, and CE; project-specific certifications added as required.
